flutter 自定义Drawer的宽度

前言

在学习flutter的时候碰到了Drawer这个Widget，但是在使用的过程中有这么一个需求，我想修改他的宽度，网上搜了一圈没找到对应的api。自己也是经过一番折腾才解决的，可能是因为我还是flutter小白把！不管怎样，记录一下，下次遇到问题，好解决。

解决过程

这里上个图就好了，代码就先不上了，毕竟下面会有最终代码。

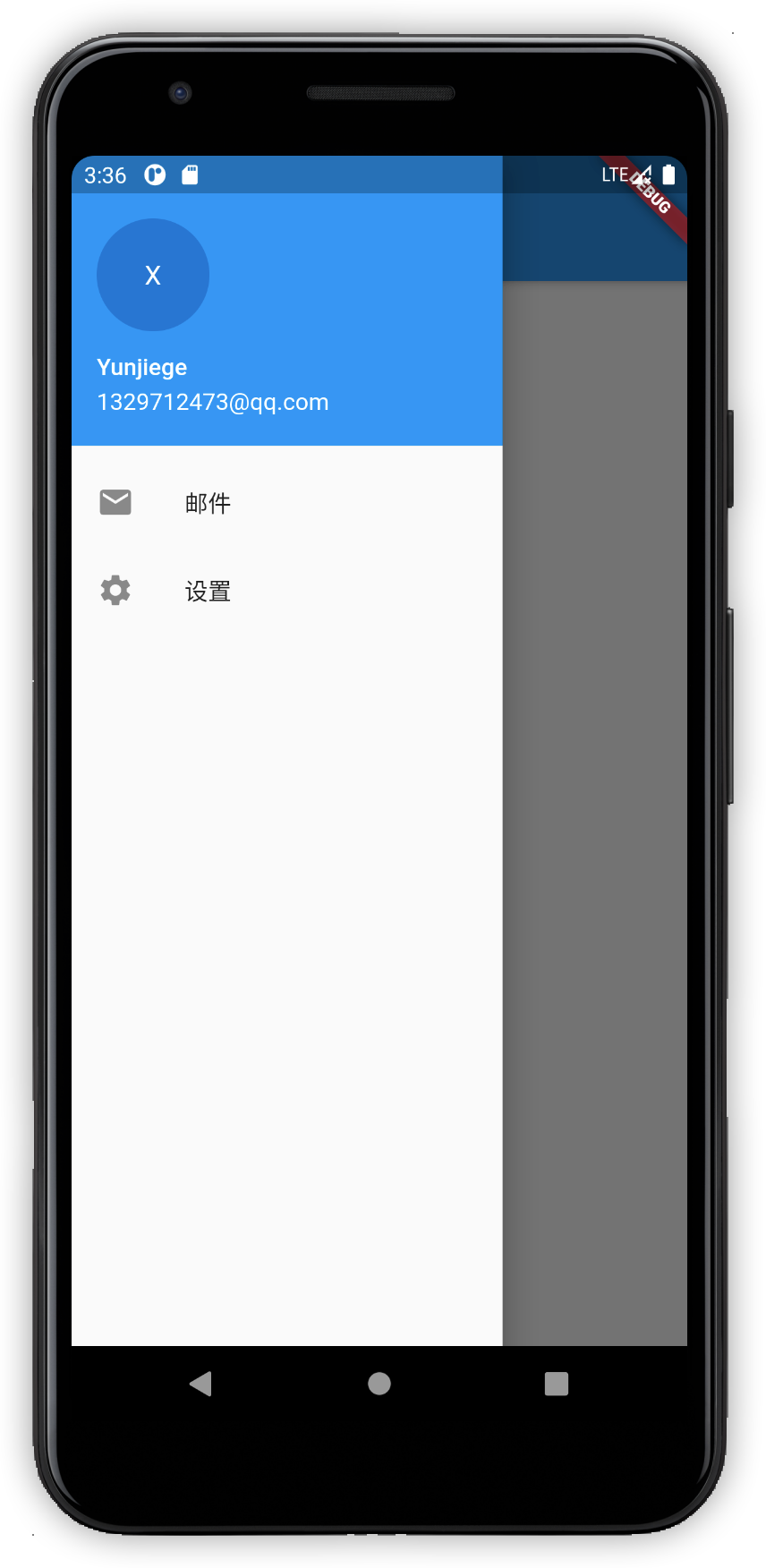

初始效果

源码

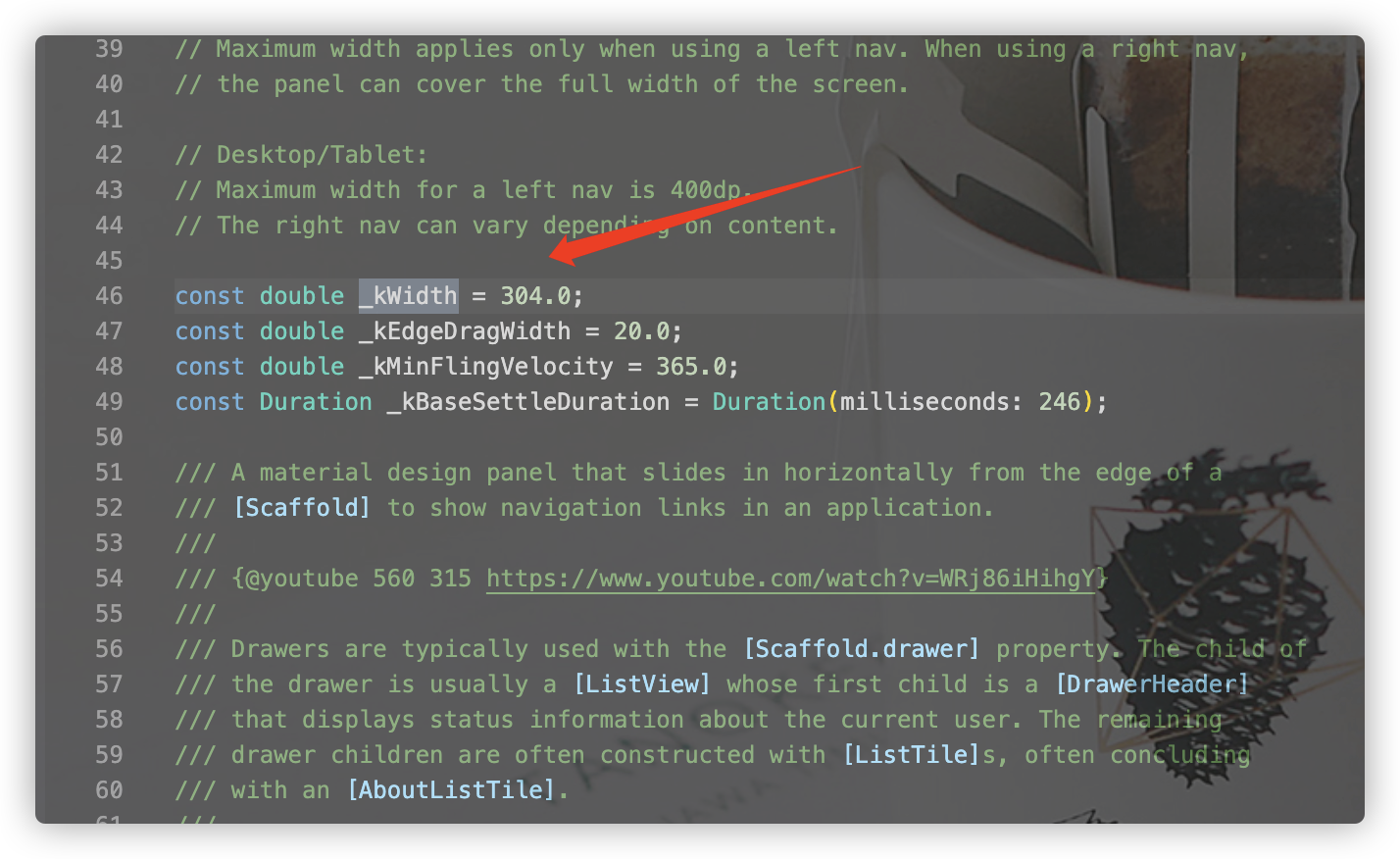

可以看到的是_kWidth字段是私有的，是没有办法被外部访问或修改的，然而，宽度的大小控制就是跟这个字段息息相关的，如下图

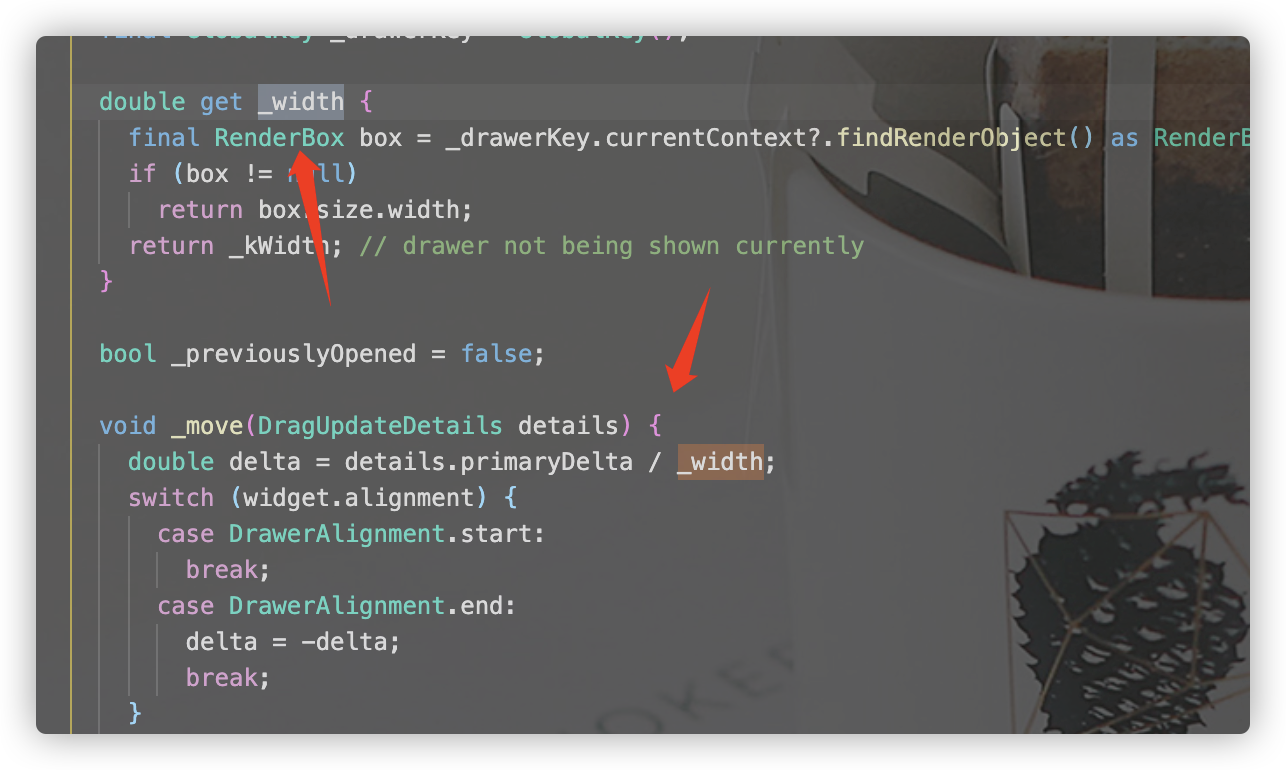

_width这个才是真正的宽度（真正的宽度的大小是根据这个变量计算出来的），但是可以发现这个也是私有的，不能被外部访问和篡改。那么，该怎样处理呢？不要怕，重写这个类不就可以了么！重写这个类，把需要的加进去就可以实现了。

重写CustomDrawer类

// 为了简单，里面一切处理没写，可以参照官方的，或者把官方的拷贝过来，在官方的基础上进行修改，都是可以的
class CustomDrawer extends StatelessWidget {
  final double elevation;
  final Widget child;
  final String semanticLabel;
  final double widthPercent;
  const CustomDrawer({
    Key key,
    this.elevation = 16.0,
    this.child,
    this.semanticLabel,
    this.widthPercent = 0.7,
  })  : assert(
            widthPercent != null && widthPercent < 1.0 && widthPercent > 0.0),
        super(key: key);
  @override
  Widget build(BuildContext context) {
    assert(debugCheckHasMaterialLocalizations(context));
    String label = semanticLabel;
    final double _width = MediaQuery.of(context).size.width * widthPercent;
    return Semantics(
      scopesRoute: true,
      namesRoute: true,
      explicitChildNodes: true,
      label: label,
      child: ConstrainedBox(
        constraints: BoxConstraints.expand(width: _width),
        child: Material(
          elevation: elevation,
          child: child,
        ),
      ),
    );
  }
}

使用重写都的CustomDrawer类

既然重构好了，就还等什么，赶紧使用吧！

class MyStatefulWidget extends StatefulWidget {
  MyStatefulWidget({Key key}) : super(key: key);

  @override
  _DrawerState createState() => _DrawerState();
}

class _DrawerState extends State<MyStatefulWidget> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text(S.current.title),
      ),
      drawer: _drawer,
    );
  }

  get _drawer {
    var listView = ListView(
      //1
      padding: EdgeInsets.zero,
      children: <Widget>[
        UserAccountsDrawerHeader(
          accountName: Text('Yunjiege'),
          accountEmail: Text('1329712473@qq.com'),
          currentAccountPicture: CircleAvatar(
            child: Text('X'),
          ),
        ),
        ListTile(
          leading: Icon(Icons.local_post_office),
          title: Text('邮件'),
        ),
        ListTile(
          leading: Icon(Icons.settings),
          title: Text('设置'),
        )
      ],
    );
    return new CustomDrawer(
      widthPercent: 0.7,//这里控制抽屉的弯度，不能小于0，不能大于1
      child: listView,
    );
  }
}

效果图和完整代码

import 'package:flutter/material.dart';

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  static const String _title = 'Flutter Code Sample';

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: MyStatefulWidget(),
    );
  }
}

class MyStatefulWidget extends StatefulWidget {
  MyStatefulWidget({Key key}) : super(key: key);

  @override
  _DrawerState createState() => _DrawerState();
}

class _DrawerState extends State<MyStatefulWidget> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text('开车cn'),
      ),
      drawer: _drawer,
    );
  }

  get _drawer {
    var listView = ListView(
      //1
      padding: EdgeInsets.zero,
      children: <Widget>[
        UserAccountsDrawerHeader(
          accountName: Text('Yunjiege'),
          accountEmail: Text('1329712473@qq.com'),
          currentAccountPicture: CircleAvatar(
            child: Text('X'),
          ),
        ),
        ListTile(
          leading: Icon(Icons.local_post_office),
          title: Text('邮件'),
        ),
        ListTile(
          leading: Icon(Icons.settings),
          title: Text('设置'),
        )
      ],
    );
    return new CustomDrawer(
      widthPercent: 0.5,
      child: listView,
    );
  }
}

class CustomDrawer extends StatelessWidget {
  final double elevation;
  final Widget child;
  final String semanticLabel;
  final double widthPercent;
  const CustomDrawer({
    Key key,
    this.elevation = 16.0,
    this.child,
    this.semanticLabel,
    this.widthPercent = 0.7,
  })  : assert(
            widthPercent != null && widthPercent < 1.0 && widthPercent > 0.0),
        super(key: key);
  @override
  Widget build(BuildContext context) {
    assert(debugCheckHasMaterialLocalizations(context));
    String label = semanticLabel;
    final double _width = MediaQuery.of(context).size.width * widthPercent;
    return Semantics(
      scopesRoute: true,
      namesRoute: true,
      explicitChildNodes: true,
      label: label,
      child: ConstrainedBox(
        constraints: BoxConstraints.expand(width: _width),
        child: Material(
          elevation: elevation,
          child: child,
        ),
      ),
    );
  }
}
